Tattoo Cartridge Membrane Tension: How to Measure It and Match It to Your Machine

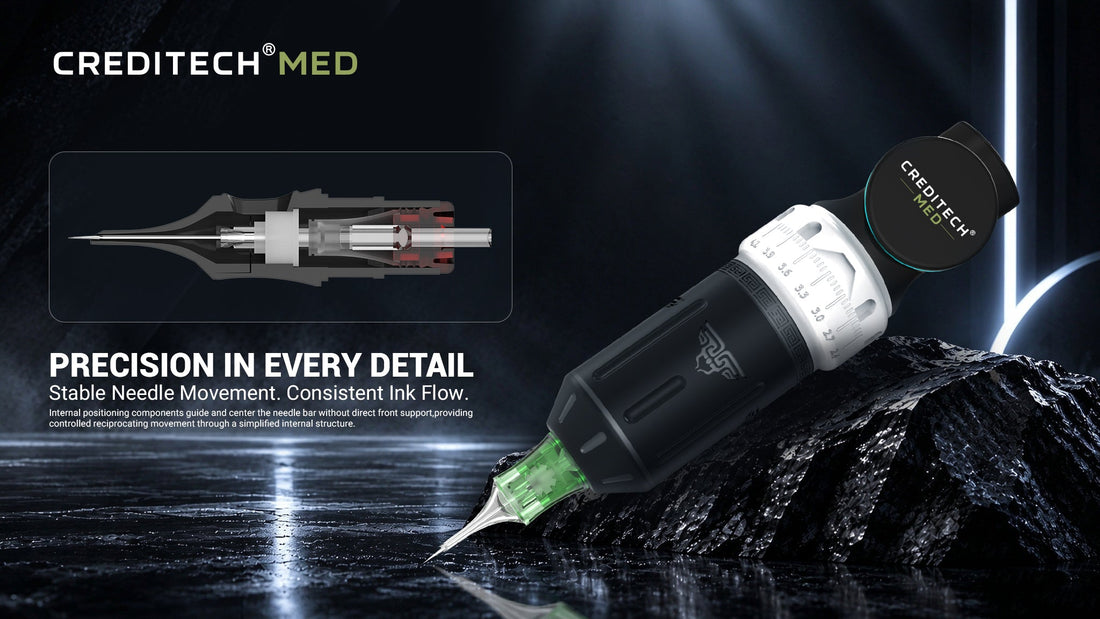

A tattoo cartridge membrane affects how the needle bundle moves and returns during operation. When a cartridge does not extend properly, it is tempting to blame a membrane that looks too thick or feels too stiff. Neither appearance nor hand feel can confirm the cause.
In this article, membrane tension means the membrane’s working resistance or force measured under a defined stroke and test speed. We explain how to measure it, why a cartridge and machine must be tested together, and what manufacturers should inspect during production.
Can Membrane Tension Be Judged by Appearance?
Material, wall thickness, shape, and structural design all affect how a membrane behaves. However, none of these features, viewed in isolation, tells you its working resistance. Different combinations of materials, dimensions, and production settings can be developed to achieve a similar target force.
A thicker membrane is therefore not necessarily stiffer in operation, and a distinctive shape is not proof of better performance. Material and structure should also be evaluated for durability, tear resistance, ease of assembly, and consistency over time.
How Should Membrane Resistance Be Measured?
A force gauge provides a more reliable basis than visual inspection or subjective feel. To make results comparable, measurements must be taken with a defined assembly, displacement, and test speed. Changing those conditions can change the recorded force.
A single measurement is only part of the assessment. The membrane must also return reliably during repeated operation, maintain consistent performance, and remain intact and securely fitted.
Does Poor Needle Extension Mean the Membrane Is Too Stiff?
Not necessarily. Excessive membrane resistance is one possible cause, but machine drive capability, stroke settings, push-rod fit, internal friction, and assembly conditions can produce similar symptoms.
If a cartridge does not extend as expected, the machine and cartridge should be checked together. A machine with insufficient drive capability may struggle to operate a cartridge even when its membrane meets the manufacturer’s specified force range.
For a closer look at a membrane-based cartridge, see our CM2 Standard Tattoo Cartridge Needles.
Why Does Machine Compatibility Matter?
Tattoo machines and cartridges vary widely in drive capability, stroke, operating frequency, and internal design. During use, the membrane must stretch and return in sync with the machine’s movement. A membrane that meets a static force specification still needs to perform reliably under actual operating conditions.
If working resistance is too high for a particular machine, the machine may struggle to drive the needle bundle. The result may be insufficient extension, hesitation, or stalling. Increased load may also contribute to higher power consumption and operating temperature.
If the membrane does not return the needle bundle quickly enough, the bundle may not be fully reset before the next drive cycle. Its movement can become poorly coordinated with the push rod, potentially causing impact noise, inconsistent extension, or a combination that cannot be used reliably.
Testing the cartridge on the intended machine is therefore a critical part of selecting membrane tension. The test should consider needle extension, return, noise, temperature, and stability during continuous use. A tension range that works well with one machine may not be the best choice for another.
This is also why communication between the customer and manufacturer matters. When customers share their machine models, typical stroke and operating settings, and feedback from actual tests, the factory can define a more suitable membrane resistance range and refine the cartridge configuration.
Do Complex Membrane Shapes Improve Needle Stability?
Needle stability depends on the cartridge as a complete system. In our cartridge designs, internal guiding and positioning features play a primary role in controlling needle-bundle movement. The membrane is not the only component responsible for stable needle extension.
Some membranes on the market have prominent side ribs or more complex shapes. Whether those features improve performance must be demonstrated through testing. If they provide no measurable benefit, they may simply make assembly more difficult.
Learn more about our approach to custom tattoo cartridge development.
What Should a Production Standard Cover?
Membrane quality depends on material selection, structural design, and process control. Common risks include excessive or insufficient working resistance, tearing, and detachment. Pilot production and machine compatibility testing should be used to establish measurable acceptance limits for routine production.
| Inspection item | What to check | Suggested acceptance criterion |
|---|---|---|
| Working resistance | Force within the specified operating stroke | Within the specified range |
| Return performance | Timely, consistent return at the intended operating settings | Returns within the defined time limit; no missed return or stall |
| Durability | Changes in performance or damage after repeated cycles | No change beyond defined limits |
| Membrane integrity | Cuts, small tears, or needle punctures | None visible under controlled inspection |
| Retention | Whether the membrane remains securely fitted during operation | No loosening or detachment |
A membrane can be damaged during assembly if it is struck by a tool or punctured by a needle tip. Small defects may be difficult to see in the relaxed state. Controlled stretching during inspection can make them easier to identify, provided the inspection itself does not damage the membrane.
Detachment may result from an assembly error or from changes in material properties or batch consistency during production. If a membrane no longer has the expected elasticity and durability, repeated stretching in use may increase the risk of failure. Investigating such cases requires a review of the material, process, and assembly records.
For more on our production and inspection approach, explore CREDITECH MED’s manufacturing facility.
How Should You Choose the Right Membrane Tension?
Choosing membrane tension is not a matter of appearance or subjective feel. It should be based on measured performance and tested compatibility with the intended machine. A practical selection process is:
-
Record the machine model, stroke, and typical operating settings.
-
Obtain the membrane’s working resistance or force range under defined test conditions.
-
Test the cartridge on the intended machine.
-
Check needle-bundle extension, return, noise, temperature, and stability during continuous use.
-
Run repeated cycles and inspect membrane integrity and retention.
-
Define measurable acceptance limits and verify them in routine production.
Frequently Asked Questions
Does a thicker tattoo cartridge membrane have more tension?
Not necessarily. Material, dimensions, shape, and structural design all affect working resistance. Membranes should be compared using measurements taken under the same assembly and test conditions.
Why is my tattoo cartridge needle not extending properly?
Excessive membrane resistance is one possible cause. Machine drive capability, stroke settings, push-rod fit, internal friction, and cartridge assembly should also be checked. Testing the cartridge on the intended machine helps identify the cause.
Can the same cartridge membrane work with every tattoo machine?
A cartridge may operate differently across machines because drive capability, stroke, and operating settings vary. Compatibility should be verified on the machines and settings customers intend to use.
How should a manufacturer test membrane performance?
Testing should cover working resistance under defined conditions, return during operation, durability over repeated cycles, membrane integrity, and secure retention in the assembled cartridge.
Choosing the Right Membrane Is a System Decision
A good membrane system needs controlled working resistance, dependable return, and durability over repeated use. Just as important, it must work with the machine that drives the cartridge. Appearance and subjective feel cannot replace force measurements, dynamic testing, and consistent production inspection.
At CREDITECH MED, we have developed assembly and inspection methods through years of cartridge production. According to our internal after-sales records for the past year, no customer complaints were specifically attributed to the membrane system. This statement is limited to the product lines and period reviewed. We continue to use production data and customer feedback to refine our membrane designs and inspection standards.
